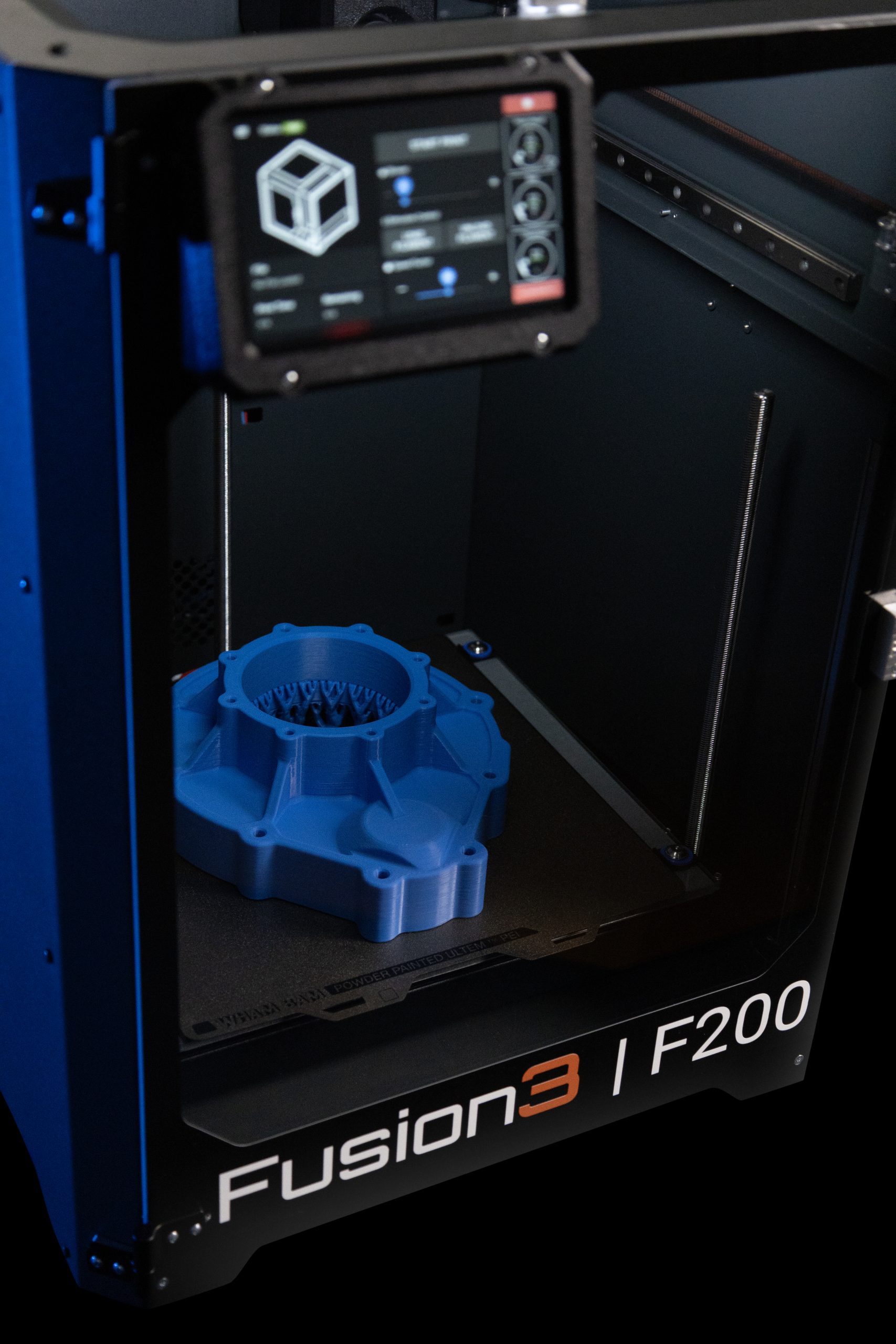

F200 PRICE AND SPECIFICATIONS
ORIGIN |
|
| Manufacturing Location: |
Greensboro, North Carolina, USA |
PHYSICAL DIMENSIONS & WEIGHT |
|
| Build Volume (mm) | 256 x 256 x 256mm |
| Dimensions (DxWxH)(mm): | 384W x 475D x 555H |
| Chassis Type: | Steel Skin |
| Weight: | 22 kg (49 lb) |
PRINTING |
|
| Max Print Size (LxWxH): |
256x256x256mm |
| Print Technology : |
Fused Filament Fabrication (FFF) |
| Max Print Speed: | 250 mm/sec |
| Max Travel Speed: | 500 mm/sec |
| Motion System |
All-Metal with Linear Rails on All Axes |
| Extruder / Feeder Type: |
Direct Drive Extruder with Dual Hardened Feed Gears |
| Filament Monitoring: |
Real-Time Comparison of Actual vs Commanded Movement |
| Printing Tolerances* |
0-150mm: +/-0.127mm 150mm+: +/-0.254mm |
ENCLOSURE & PRINT SURFACE |
|
| Ambient Operating Temperature: | 7-29C (45F to 85F) |
| Enclosure Temperature: | 70C (158F) passively heated |
| Print Surface: | PC PEI, Optional Glass, All Bambu P1/X1 Print Surfaces |
| Maximum Bed Temp: | 140C ac mains driven |
| Bed Leveling: | Auto Level, Manual, First Layer Height Calibration |
| Filtration: | HEPA + Carbon Recirculating Filter |
| Fans: | Closed Loop |
| Input Voltage & Power Draw: | 110/240 Approx 600W Peak |
PRICE & SHIPPING |
|
| F200 3D Printer: | $3,299 |
| Shipping (USA & Can): | UPS/parcel |
| International Shipping: | UPS/parcel |
| Shipping Cost: | TBD |
SOFTWARE |
|
| Processing Software: |
Fusion3 F3Slic3r (Free & Open Source) |
| Operating Systems: | Windows, Mac |
| File Types: | .STL, .OBJ, .STEP |
AVAILABLE OPTIONS |
|
| ANVIL Print Head: |
$125 |
| Set of ANVIL Replacement Print Tubes (.4MM, .6MM or .8MM) | $50 |
| Print Glass: | $50 |
| Replacement Filter Set: | $49 |
| Binder EDS 115 Lab Oven (for Humidity Free Filament Storage) |
Must purchase directly through Binder – https://www.binder-world.com/us-en/product/ed-115 |
| 1500VA UPS Basic Backup – Power Conditioning & 7-15 minutes of power |
$449 |
| 1000VA UPS Smart Backup Controller – Power Conditioning, 7-15 minutes of power, control multiple daisy chain batteries |
$699 |
| Daisy Chainable Battery (each) – provides up to 50 minutes run time (requires Smart Backup Controller) |
$699 |
MATERIALS |
|
| Materials: |
PLA, PETG, ABS, ASA, Nylons, PC, TPU/TPE, & More |
| Filament Diameter: |
1.75mm |
| Multi-Material/Multi-Color: | Coming 2Q2025 |
| Filament Handling: | Rear or Side Externally Mounted Spool Holder |
| Max Spool Size: | Standard 1kg Spools |
PRINT HEADS / PERFORMANCE |
.4MM |
.6MM |
.8MM |
| Print Head: | Fusion3 ANVIL | Fusion3 ANVIL | Fusion3 ANVIL |
| Layer Height (Min – Max): | 0.05-0.3mm | 0.1-0.4mm | 0.15-0.55mm |
| Min Feature Size: | .5 mm2 | .75 mm2 | 1.0 mm2 |
| Feature Tolerance: |
0-150mm: +/-0.127mm 150mm+: +/-0.254mm |
0-150mm: +/-0.127mm 150mm+: +/-0.254mm |
0-150mm: +/-0.127mm 150mm+: +/-0.254mm |
| Print Nozzle (Tube): |
.4 mm surgical steel, wear resistant, replaceable tube |
.6 mm surgical steel, wear resistant, replaceable tube |
.8 mm surgical steel, wear resistant, replaceable tube |
| Maximum Melt Temperature: | 320C | 320C | 320C |
| Maximum Cubic Flow Rate: | 20 mm^3/sec | 36 mm^3/sec | 45 mm^3/sec |
Connectivity & User Interaction |
|
| User Interface: |
5″ full color touchscreen |
| Network & Connectivity: |
Wifi, Ethernet |
| File Connectivity: | USB, Network |
| Camera: | Standard Feature |
| Storage: | Onboard 32GB Flash Storage, External USB Port |
| Ai Print Detection: | Runs on printer without cloud connection |
| Ai Print Detection: |
Local Network or Internet (Optional Internet-Enabled Push Notifications) |
ELECTRICAL & CERTIFICATIONS |
|
| AC Input/Output: | 110/240 |
| Peak Power: | 600W |
| Power Loss Recovery: |
Yes |
| Regulatory Approvals: |
FCC, PSU UL Certified, CE TBD |
WARRANTY & SUPPORT |
|
| Standard Warranty: |
6 Months for Materials & Workmanship |
| Technical Support: |
Email, One-on-One Video Consultations, and Expedited SLA Options Available |
